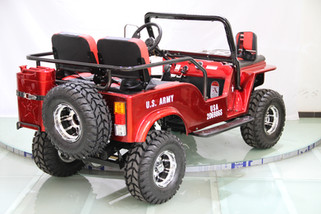

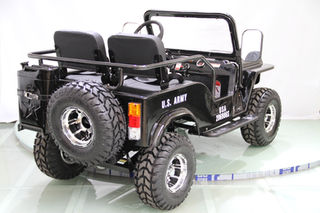

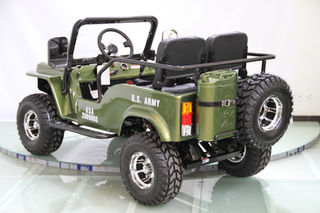

Mini Jeep 125cc

Engine / Drive Train Specifications

Engine: 124cc, 4-stroke

Cylinder Arrangement: Single cylinder

Max Horsepower: 6.57HP/8000RPM

Max Torque: 5.17ft-lb/5000RPM

Bore × Stroke: 52mm x 55.5mm

Compression Ratio: 9.0:1

Cooling System:  Air cooled

Transmission:  3-speed with reverse

Start System:  Electric start

Ignition: CDI

Final Drive: Chain drive

Max  Speed: 25-30MPH

Battery:  12V7Ah



Frame / Body / Suspension / Brakes

Front Suspension:  Dual A-Arm with dual shock absorbers.

Rear Suspension:  Swing arm with dual shock absorbers.

Front Brake: Hydraulic disc brake.

Rear Brake:  Hydraulic disc brake.

Front Tires: 18x7-8 Alloy Rim

Rear Tires: 18x7-8 Alloy Rim



Capacities / Dimensions

Max Load: 352.8lbs

Gross Weight: 507.15lbs

Net Weight:  418.95lbs

Overall Length: 82.68inches

Overall Width: 45.67inches

Overall Height: 41.74inches

Carton Dimensions (L × W × H):  76.4x44.9x31.9inches (Assembled in the box)

Seat Height: 25.59inches

Wheelbase:  51.18inches

Ground Clearance: 6.3inches

Gas Tank Capacity:  0.59gal

Fuel Consumption: 88.76mpg



Available colors:  Burgundy, Army Green, Black, Blue, Orange, Green Camo.
